R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168

Name: R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168
Brand: Ningbo Kent Bearing Co., Ltd
SKU: R156, R168
Availability: InStock

Brand Name:	BUGAO/NBKT
Model Number:	R156, R168
MOQ:	1,000 sets
Price:	Negoiatiable
Delivery Time:	Negotiable
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015

Bearing Name:

Deep Groove Ball Bearing

Material:

Bearing Steel, Carbon Steel, Etc

Precision:

P0, P6, P5, P4

Clearance:

C2, C0, C3, C4

Specification:

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Closures:

Open, Sealed, Shielded

Noise &Vibration:

Z1V1, Z2V2, Z3V3, Z4V4

Bearing Life:

Up To 10 Years

Shipping Method:

By Express, By Sea, By Air, Negotiable

Packing Method:

Individual/Single Packing, Tube/Barrels Packing, Custom Packing

HS Code:

8482102000

OEM Service:

Customization Welcomed

Packaging Details:

Single/Barrels Package

Supply Ability:

30,000,000 sets

Highlight:

R Series Deep Groove Ball Bearing

Deep Groove Ball Bearing P6

P5 Low Noise Ball Bearing

Product Description

Special R Series Deep Groove Ball Bearings For Electric Tools, Auto Parts

These types of deep groove ball bearing can be used in automobiles, motorcycles, electric tools, fans, air conditioners, hair dryers, sweepers, vacuum cleaners, tractors, machinery, motors, water pumps, etc. It is widely used, simple in design, non-separated, suitable for high speed, reliable in operation and low in maintenance cost.

Kent bearings have the advantages of high speed, low noise, high precision and long life. The 20-year source factory always provides you with reliable products and services.

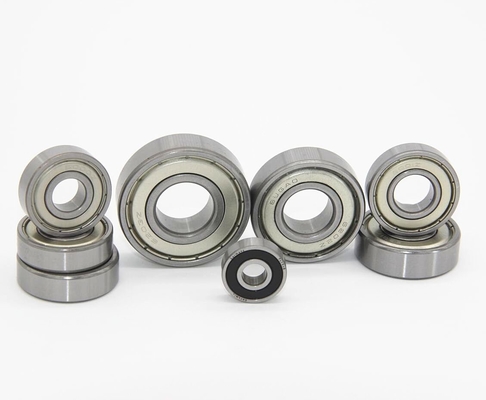

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168 0


R Series Deep Groove Ball Bearings can be customed sizes, below specification chart is for your reference.

Technical Parameters of R Series Deep Groove Ball Bearing:

Basic Bearing No.	Bore d		Outer DiameterD		Width W				Radius r		Basic Load Rating KN
	Bore d		Outer DiameterD		Open		Shield Seal		Radius r		Dynamic C	Static C0
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic C	Static C0
R156	4.763	0.1875	7.938	0.3125	2.78	0.1094	3.18	0.1250	0.1	0.004	0.395	0.143
R166	4.763	0.1875	9.525	0.3750	3.18	0.1250	3.18	0.1250	0.1	0.004	0.71	0.268
R3	4.763	0.1875	12.700	0.5000	3.97	0.1562	4.98	0.1960	0.15	0.006	1.31	0.49
R3A	4.763	0.1875	12.700	0.5000	4.98	0.1960	4.98	0.1960	0.15	0.006	1.31	0.49
R168	6.350	0.2500	9.525	0.3750	3.18	0.1250	3.18	0.1250	0.1	0.004	0.268	0.136
R188	6.350	0.2500	12.700	0.5000	3.18	0.1250	4.76	0.1875	0.15	0.006	0.83	0.37
R4	6.350	0.2500	15.875	0.6250	4.98	0.1960	4.98	0.1960	0.2	0.008	1.48	0.615
R4A	6.350	0.2500	19.050	0.7500	5.56	0.2188	7.14	0.2812	0.3	0.012	2.34	0.885
R6	9.525	0.3750	22.225	0.8750	5.56	0.2188	7.14	0.2812	0.3	0.012	3.3	1.4
R8	12.70	0.5000	28.575	1.1250	6.35	0.2500	7.94	0.3125	0.3	0.012	3.912	2.245
R8-7	11.113	0.4375	28.575	1.1250	6.35	0.2500	…	…	0.3	0.012	3.912	2.245
R10	15.875	0.6250	34.925	1.3750	7.14	0.2812	8.73	0.3438	0.6	0.024	4.605	2.774
R12	19.050	0.7500	41.275	1.6250	7.94	0.3125	11.11	0.4375	0.6	0.024	7.246	4.445

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data For Sibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Wide Applications of Deep Groove Ball Bearings:


Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

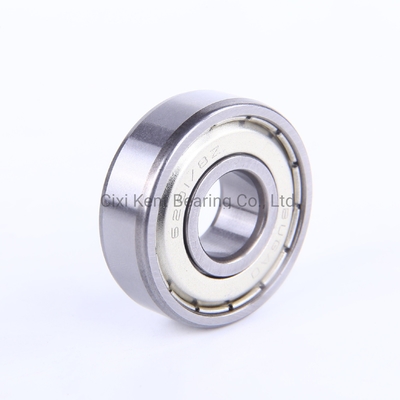

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168 4

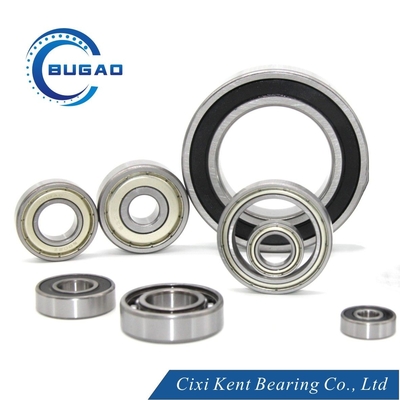

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168 5

Tags:

1607 2RS Bearing

Low Noise Ball Bearing

Metal Ball Bearing

6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers

Get Best Price

6202ZZ Ball Bearing High Speed Precision Bearings

Get Best Price

Video

High temperature resistance 6000 Series Bearing 6001 2RS Bearing

Get Best Price

Video

6001ZZ High Speed Silent Motor Bearings Factory Direct Supply ABEC-5

Get Best Price

Video

6200 Series Bearing C3 Radial Ball Bearing For Sports Equipment

Get Best Price

Video

Customized Stainless Steel Ball Bearing 6201 with 420 Material

Get Best Price

Double Sealed 6000 Series Bearing 12x28x8mm 6001ZZ Bearing High Speed

Get Best Price

Video

6002ZZ High Speed and High Precision Electric Tool Bearings

Get Best Price

Products Details

Home Products

Deep Groove Ball Bearing

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168

All Category

Electric Motor Bearing

Deep Groove Ball Bearing

6000 Series Bearing

6200 Series Bearing

6300 Series Bearing

6800 Series Bearing

6900 Series Bearing

High Precision Bearing

P6 Bearing

P5 Bearing

P4 Bearing

Miniature Bearing

Non Standard Bearing

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168

Brand Name:	BUGAO/NBKT
Model Number:	R156, R168
MOQ:	1,000 sets
Price:	Negoiatiable
Packaging Details:	Single/Barrels Package
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

BUGAO/NBKT

Certification:

ISO9001:2015

Model Number:

R156, R168

Bearing Name:

Deep Groove Ball Bearing

Material:

Bearing Steel, Carbon Steel, Etc

Precision:

P0, P6, P5, P4

Clearance:

C2, C0, C3, C4

Specification:

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Closures:

Open, Sealed, Shielded

Noise &Vibration:

Z1V1, Z2V2, Z3V3, Z4V4

Bearing Life:

Up To 10 Years

Shipping Method:

By Express, By Sea, By Air, Negotiable

Packing Method:

Individual/Single Packing, Tube/Barrels Packing, Custom Packing

HS Code:

8482102000

OEM Service:

Customization Welcomed

Minimum Order Quantity:

1,000 sets

Price:

Negoiatiable

Packaging Details:

Single/Barrels Package

Delivery Time:

Negotiable

Payment Terms:

T/T

Supply Ability:

30,000,000 sets

Highlight:

R Series Deep Groove Ball Bearing

Deep Groove Ball Bearing P6

P5 Low Noise Ball Bearing

Product Description

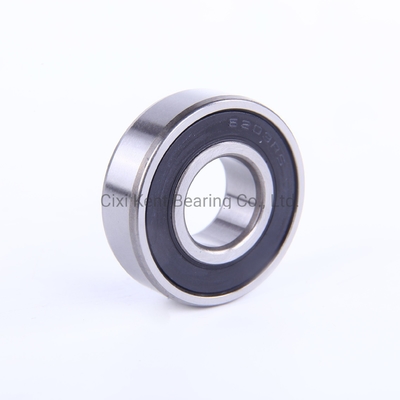

Special R Series Deep Groove Ball Bearings For Electric Tools, Auto Parts

Kent bearings have the advantages of high speed, low noise, high precision and long life. The 20-year source factory always provides you with reliable products and services.

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168 0


R Series Deep Groove Ball Bearings can be customed sizes, below specification chart is for your reference.

Technical Parameters of R Series Deep Groove Ball Bearing:

Basic Bearing No.	Bore d		Outer DiameterD		Width W				Radius r		Basic Load Rating KN
	Bore d		Outer DiameterD		Open		Shield Seal		Radius r		Dynamic C	Static C0
	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic C	Static C0
R156	4.763	0.1875	7.938	0.3125	2.78	0.1094	3.18	0.1250	0.1	0.004	0.395	0.143
R166	4.763	0.1875	9.525	0.3750	3.18	0.1250	3.18	0.1250	0.1	0.004	0.71	0.268
R3	4.763	0.1875	12.700	0.5000	3.97	0.1562	4.98	0.1960	0.15	0.006	1.31	0.49
R3A	4.763	0.1875	12.700	0.5000	4.98	0.1960	4.98	0.1960	0.15	0.006	1.31	0.49
R168	6.350	0.2500	9.525	0.3750	3.18	0.1250	3.18	0.1250	0.1	0.004	0.268	0.136
R188	6.350	0.2500	12.700	0.5000	3.18	0.1250	4.76	0.1875	0.15	0.006	0.83	0.37
R4	6.350	0.2500	15.875	0.6250	4.98	0.1960	4.98	0.1960	0.2	0.008	1.48	0.615
R4A	6.350	0.2500	19.050	0.7500	5.56	0.2188	7.14	0.2812	0.3	0.012	2.34	0.885
R6	9.525	0.3750	22.225	0.8750	5.56	0.2188	7.14	0.2812	0.3	0.012	3.3	1.4
R8	12.70	0.5000	28.575	1.1250	6.35	0.2500	7.94	0.3125	0.3	0.012	3.912	2.245
R8-7	11.113	0.4375	28.575	1.1250	6.35	0.2500	…	…	0.3	0.012	3.912	2.245
R10	15.875	0.6250	34.925	1.3750	7.14	0.2812	8.73	0.3438	0.6	0.024	4.605	2.774
R12	19.050	0.7500	41.275	1.6250	7.94	0.3125	11.11	0.4375	0.6	0.024	7.246	4.445

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data For Sibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Wide Applications of Deep Groove Ball Bearings:


Customization Welcomed:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168 4

R Series Deep Groove Ball Bearing P0 P6 P5 Low Noise Ball Bearing R156 R168 5

Tags:
