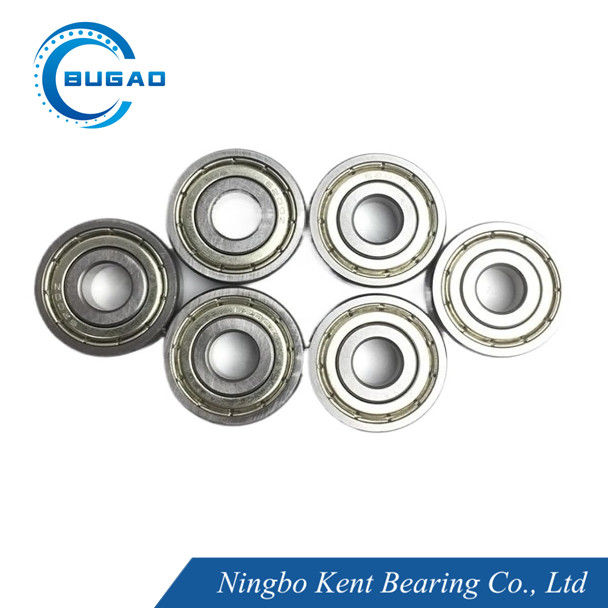

6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers

Name: 6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers
Brand: Ningbo Kent Bearing Co., Ltd
SKU: 6203ZZ 6203 6203-2RS
Availability: InStock

Brand Name:	BUGAO
Model Number:	6203ZZ 6203 6203-2RS
MOQ:	1000 pcs
Price:	Negotiable
Delivery Time:	20 to 30 days
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Certification:

ISO 9001:2015

Bearing Name:

6200 Series Bearing

Bearing Type:

Single Row Deep Groove Ball

Bearing Material:

Chrome Steel, Stainless Steel, Ceramic, Etc

Precision:

P0, P6, P5, P4

Tolerance Class:

ABEC-1, ABEC-3, ABEC-5, ABEC-7

Clearance:

C2, C0, C3, C4

Noise & Vibration:

Z1V1, Z2V2, Z3V3, Z4V4

Seal And Sheild Type:

Open, Z, RZ, ZZ, RS, 2RS

Seal And Sheild Type:

Open, Z, RZ, ZZ, RS, 2RS

Cage Type:

Steel

Customization:

Customization Welcomed

Packaging Details:

Single Box/Individual Packing, Industrial/Tube Packing, Custom Packing

Supply Ability:

30, 000, 000 pcs per year

Highlight:

ABEC 1 6200 Series Bearing

6200 Series Bearing P0

P4 6203ZZ Bearing

Product Description

6203ZZ 6203 Rolling Bearing With Steel Cage For Lawn Mowers, Automotive, Appliances, Sporting Machines

Product Description:

6203 ZZ Deep Groove Ball Bearing: It is made of 100% Chrome Steel and Pre-Lubricated with High-Quality Grease, ideal for use in High—and Low-temperature settings.
This deep groove ball bearing has a shield on both sides, to protect the bearing from dust or contamination.
Application: Motorcycles, Snowmobiles, Snowblowers, Snow Thrower, Lawn Mowers, Automotive, Appliances, Sporting Machines, Agriculture Machines, Industrial Applications, Electric Motors, HVAC, Furnaces, Transmissions, Gearboxes, Elevators, Lifts and Hoists, Medical Devices...etc
Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life.

62 Series Bearings Parameters

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight kg/pc
	mm	inch	mm	inch	mm	inch	mm	inch	Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
									C	C_O	r/min	r/min
627	7	0.2756	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.013
628	8	0.3149	24	0.9448	8	0.3149	0.3	0.012	4	1.59	24000	32000	0.017
629	9	0.3543	26	1.0236	8	0.3149	0.3	0.012	4.55	1.96	22000	30000	0.02
6200	10	0.3937	30	1.1811	9	0.3543	0.6	0.024	5.1	2.39	19000	26000	0.032
6201	12	0.4724	32	1.2598	10	0.3937	0.6	0.024	6.1	2.75	18000	24000	0.037
6202	15	0.5906	35	1.3780	11	0.4331	0.6	0.024	7.75	3.6	17000	22000	0.045
6203	17	0.6693	40	1.5748	12	0.4724	0.6	0.024	9.6	4.6	16000	20000	0.066
6204	20	0.7874	47	1.8504	14	0.5512	1.0	0.039	12.8	6.65	14000	18000	0.106
6205	25	0.9843	52	2.0470	15	0.5906	1.0	0.039	14	7.85	12000	16000	0.128
6206	30	1.1811	62	2.4409	16	0.6299	1.0	0.039	19.5	11.3	10000	13000	0.199
6207	35	1.3780	72	2.8346	17	0.6693	1.1	0.043	25.7	15.3	8800	10000	0.287
6208	40	1.5748	80	3.1496	18	0.7087	1.1	0.043	29.1	17.8	7700	9200	0.367
6209	45	1.7717	85	3.3465	19	0.7480	1.1	0.043	32.5	20.4	6800	8200	0.416
6210	50	1.9685	90	3.5433	20	0.7874	1.1	0.043	35	23.2	6100	7300	0.462
6211	55	2.1654	100	3.9370	21	0.8268	1.5	0.059	43.5	29.2	5500	6600	0.602
6212	60	2.3622	110	4.3307	22	0.8661	1.5	0.059	52.5	36	5000	6000	0.789
6213	65	2.5591	120	4.7244	23	0.9055	1.5	0.059	58.5	40.5	4800	5800	0.99
6214	70	2.7559	125	4.9213	24	0.9449	1.5	0.059	63.7	45	4600	5600	1.1
6215	75	2.9528	130	5.1181	25	0.9843	1.5	0.059	68.9	49	4400	5400	1.2

Applications:

Applicable to all kinds of cars, motorcycles, bikes, sports equipment, agriculture machines.

6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers 0

6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers 1

Customization:

Product Customization Services for the 6200 Series Bearing:

Brand Name: BUGAO/NBKT

Model Number: 6200, 6201, 6202, 6203, 6204, 6205, 6206, 6207, 6208, 6209, 6210

Place Of Origin: Ningbo, China

Customization: Customization Welcomed

Stock: Rich

Bearing Type: Single Row Deep Groove Ball

Bearing Material: Chrome Steel, Stainless Steel, Etc

Series: 6200 Ball Bearing

Keywords: Rubber Sealed Bearing, Air Conditioner Bearing, Motorcycle Bearing

Packing and Shipping:

Product Packaging and Shipping for the 6200 Series Bearing:

The 6200 Series Bearing is carefully packaged to ensure its safe delivery to you.

For shipping, we use reliable carriers to deliver your order in a timely manner. Your package will be tracked and insured for added peace of mind.

6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers 2

Other Technical Data of Ball Bearings

6200 Series Bearing High Percision 6203ZZ Bearing For Lawn Mowers 3

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5
