Created with Pixso. motor bearing for 1602 1603 1604 from bearing factory
motor bearing for 1602 1603 1604 from bearing factory
  • Name
  • Name
  • Name
  • Name

motor bearing for 1602 1603 1604 from bearing factory

Detail Information
Product Description
Detail Information
Product Description

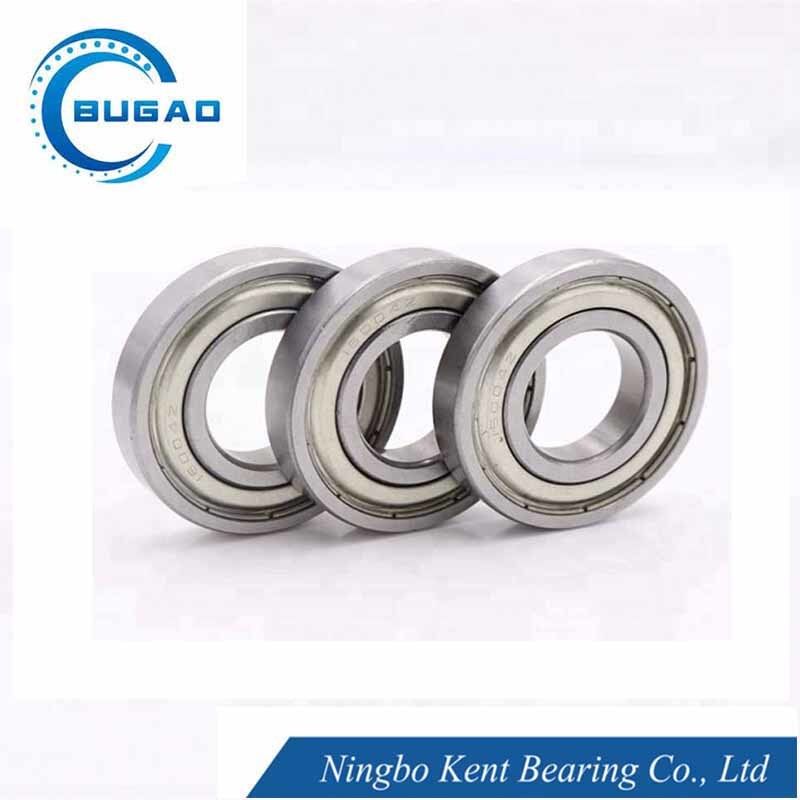

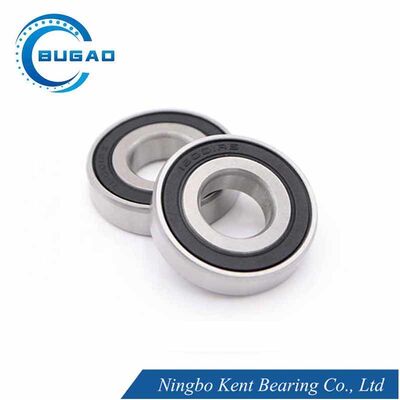

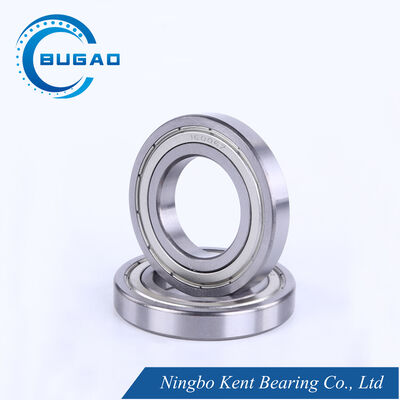

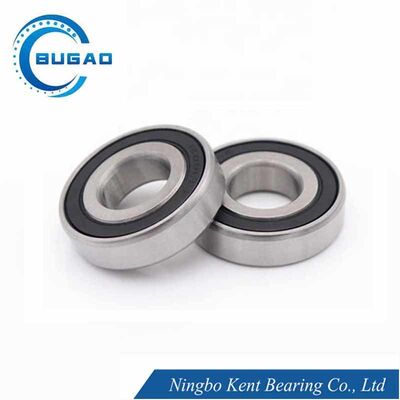

The type of deep groove ball Bearing 16 series component materials used in automobile, tractor, machinery, motor, water pump, agricultural machinery and textile machinery. Its wide application, simple design, non - separation, suitable for high - speed, reliable operation, low maintenance costs.The tight consistency between deep raceway and ball enables bearings to bear axial and radial force.
Product Parameters:


Bearing Code
d

Bore
d
mm inch
D

Outer Diameter
D
mm inch
W

Width
W
mm inch
r

Radius
r
mm inch		 KN
"Basic Loading KN"
"Ball Component"

Cr
Dynamic
Cr
Cor
Static
Cor		 Grease(r/min) Oil(r/min)
1601 4.763   .1875 17.463    .6875 ★6.350   .2500 0.3   .012 1.511 0.724 6 3.969
1602 6.350   .2500 17.463    .6875 ★6.350   .2500 0.3   .012 1.511 0.724 9 2.831
1603 7.938   .3125 22.225    .8750 △7.144   .2812 0.3   .012 2.547 1.342 7 3.969
1604 9.525   .3750 22.225    .8750 △7.144   .2812 0.3   .012 2.547 1.342 7 3.969
1605 7.938   .3125 23.019    .9062 7.938     .3125 0.3   .012 2.547 1.342 7 3.969
1606 9.525   .3750 23.019    .9062 7.938     .3125 0.3   .012 2.547 1.342 7 3.969
1607 11.113  .4375 23.019    .9062 7.938     .3125 0.3   .012 3.556 1.938 7 3.969
1614 9.525   .3750 28.575   1.1250 9.525     .3750 0.3   .012 3.921 2.245 8 4.763
1615 11.113  .4375 28.575   1.1250 9.525     .3750 0.3   .012 3.921 2.245 8 4.763
1616 12.700  .5000 28.575   1.1250 9.525     .3750 0.3   .012 3.921 2.245 8 4.763
1620 11.113  .4375 34.925   1.3750 11.113    .4375 0.6   .024 5.881 3.471 10 4.763
1621 12.700  .5000 34.925   1.3750 11.113    .4375 0.6   .024 5.881 3.471 10 4.763
1622 14.288  .5625 34.925   1.3750 11.113    .4375 0.6   .024 5.881 3.471 10 4.763
1623 15.875  .6250 34.925   1.3750 11.113    .4375 0.6   .024 5.881 3.471 10 4.763
1628 15.875  .6250 41.275   1.6250 12.700    .5000 0.6   .024 7.232 4.45 9 6.35
1630 19.050  .7500 41.275   1.6250 12.700    .5000 0.6   .024 7.232 4.45 9 6.35
1633 15.875  .6250 44.450   1.7500 12.700    .5000 1.0   .039 7.232 4.45 9 6.35
1635 19.050  .7500 44.450   1.7500 12.700    .5000 1.0   .039 7.232 4.45 9 6.35
motor bearing for 1602 1603 1604 from bearing factorymotor bearing for 1602 1603 1604 from bearing factorymotor bearing for 1602 1603 1604 from bearing factorymotor bearing for 1602 1603 1604 from bearing factory

Application Area:
1. Automatic controlling machine
2. Semi-conductor industry
3. General industry machinery
4. Medical equipment
5. Solar energy equipment
6. Machine tool
7. Parking system
8. High-speed rail and aviation transportation equipment, etc.

motor bearing for 1602 1603 1604 from bearing factory

About us
Ningbo Kent bearing company was established in 2003 and is one of the leading bearing manufacturers and exporters in China. Kent specialized in designing and producing high precision deep groove bearing, high speed and low noise ball bearings and pillow block bearings.Products widely exported more than 50 countries with 2 independant brands, namely "BUGAO" and "NBKT".
