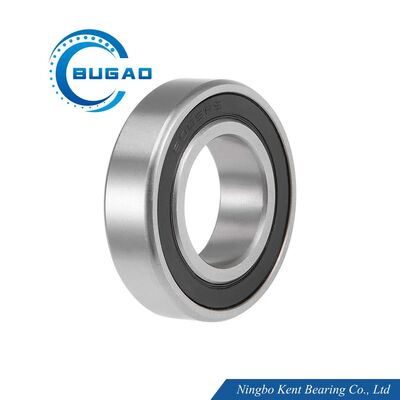

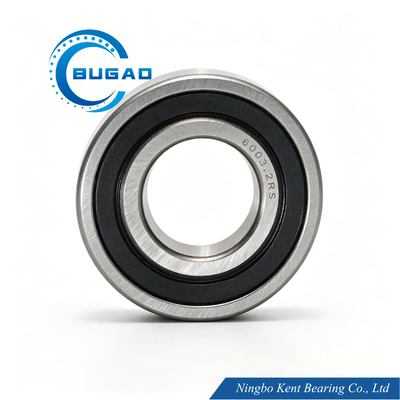

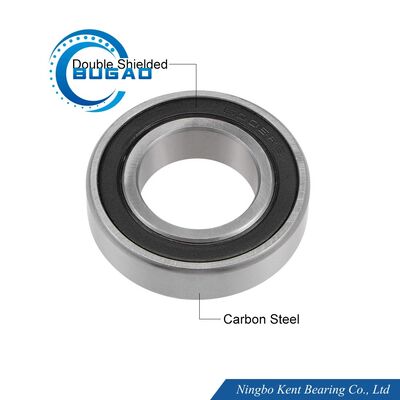

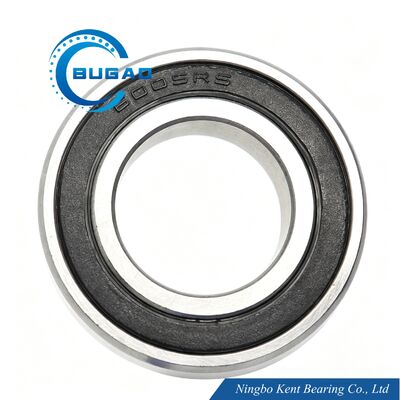

6005-RS Deep Groove Ball Bearing P6 Precision Z3V3 Low Noise 25x47x12mm Rubber Sealed for Food Processing Machinery

Name: 6005-RS Deep Groove Ball Bearing P6 Precision Z3V3 Low Noise 25x47x12mm Rubber Sealed for Food Processing Machinery
Brand: Ningbo Kent Bearing Co., Ltd
SKU: 6005-RS
Availability: InStock

Brand Name:	BUGAO
Model Number:	6005-RS
MOQ:	1,000 pcs
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Bearing Name:

6005-RS Deep Groove Ball Bearing

Bearing Size:

25x47x12mm

Bearing Type:

Single Row

Precision:

P0 P6 P5 P4

Tolerance Class:

ABEC-1, ABEC-3, ABEC-5, ABEC-7

Noise & Vibration:

ZV1 ZV2 ZV3 ZV4

Seal Type:

RS (Rubber Seal)

Clearance:

C2, C0, C3, C4

Material:

Bearing Steel, Stainless Steel, Ceramic, Etc

Lubrication:

Grease Or Oil

HS Code:

8482102000

OEM Service:

Customization Welcomed

Aligning:

Non-aligning

Separated:

Unseparated

Packaging Details:

Single Package, Industrial/Tube Packing, Custom Packing

Supply Ability:

30,000,000 pcs per year

Highlight:

6005-RS Deep Groove Ball Bearing

Rubber Sealed P6 Z3V3 Bearing

Food Processing Machinery Bearing

Product Description

1. Product Overview

6005-RS is a single-row deep groove ball bearing with rubber seal protection, manufactured to ISO standard dimensions of 25×47×12mm. Made of high-purity GCr15 chrome bearing steel with P6 precision grade, this bearing provides low noise (Z3V3) and stable running performance. The rubber seal keeps lubricating grease inside while effectively blocking moisture, dust and contaminants from entering the bearing, making it an excellent choice for humid, dusty and washdown environments. Pre-lubricated and maintenance-free, the 6005-RS bearing ensures reliable long-term operation in demanding working conditions.

2. Core Product Features

P6 Precision Grade: ABEC-3 tolerance class ensures accurate shaft alignment, stable rotation and extended equipment life.
Z3V3 Low Noise Level: Optimized raceway geometry and super-finished rolling elements deliver quiet, vibration-free operation.
Rubber Seal Protection: Effective sealing against moisture, water splash, dust and chemical contamination, retaining grease for long service intervals.
High Speed Capability: Supports up to 13,000 r/min with grease lubrication and 17,000 r/min with oil lubrication.
Strong Load Capacity: Dynamic load rating of 10.1 kN and static load rating of 5.85 kN handle radial and light axial loads reliably.
Premium Material & Long Durability: High-purity GCr15 chrome bearing steel with overall heat treatment provides high hardness, wear resistance and fatigue strength.
Maintenance-Free & Cost-Effective: Factory pre-lubricated, reducing maintenance frequency and total ownership cost.

3. Technical Parameters

Parameter	Value
Bearing Model	6005-RS
Bore Diameter (d)	25 mm
Outer Diameter (D)	47 mm
Width (B)	12 mm
Chamfer Dimension (r)	0.6 mm
Dynamic Load Rating (Cr)	10.1 kN
Static Load Rating (Cor)	5.85 kN
Limiting Speed (Grease)	13,000 r/min
Limiting Speed (Oil)	17,000 r/min
Precision Grade	P6 (ABEC-3)
Noise & Vibration Level	Z3V3
Internal Clearance	C2, C0, C3, C4
Seal Type	RS Rubber Seal
Material	GCr15 Chrome Bearing Steel
Weight	0.08 kg/pc

4. Wide Application Scenarios

The 6005-RS deep groove ball bearing is designed for medium-speed rotating equipment in humid, dusty or washdown environments:

Food Processing Machinery: Conveyor rollers, mixers, filling lines and packaging equipment in food plants.
Irrigation & Agricultural Equipment: Irrigation pumps, sprayers and outdoor agricultural machines exposed to water and soil.
Marine & Outdoor Equipment: Boat accessories, outdoor power equipment and garden machinery requiring moisture resistance.
Industrial Pumps & Blowers: Water pumps, chemical pumps and ventilation units operating in damp conditions.

Every 6005-RS bearing is strictly inspected for dimensions, hardness and noise level before delivery. We support bulk wholesale, OEM customization, customized packaging and fast global delivery.
