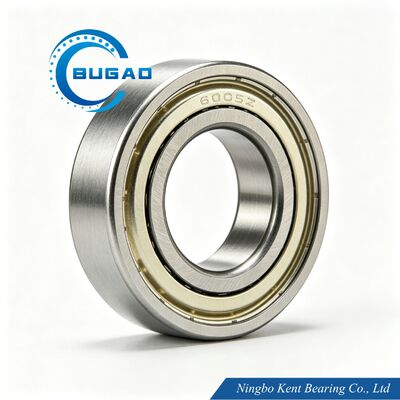

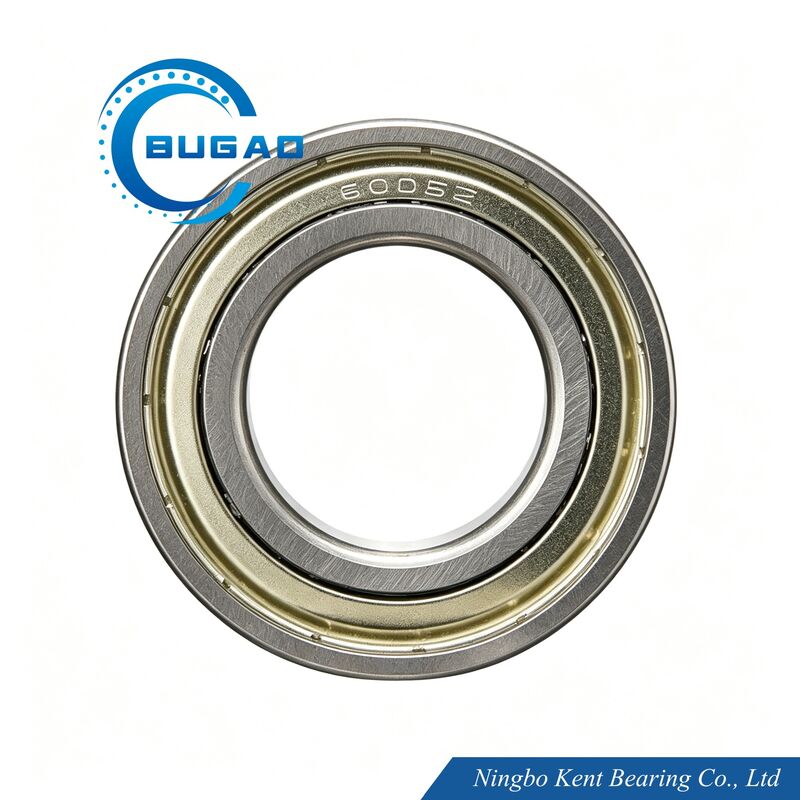

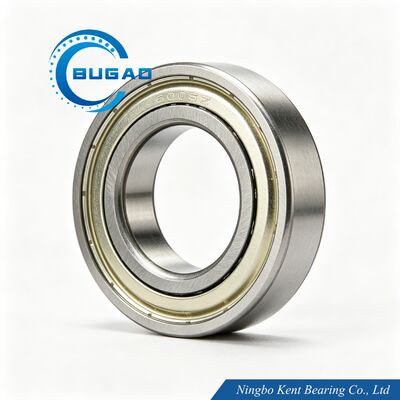

6005-ZZ Deep Groove Ball Bearing P6 Precision Z3V3 Low Noise 25x47x12mm Double Metal Shield for Conveyor Systems

Name: 6005-ZZ Deep Groove Ball Bearing P6 Precision Z3V3 Low Noise 25x47x12mm Double Metal Shield for Conveyor Systems
Brand: Ningbo Kent Bearing Co., Ltd
SKU: 6005-ZZ
Availability: InStock

Brand Name:	BUGAO
Model Number:	6005-ZZ
MOQ:	1,000 pcs
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T, L/C, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Bearing Name:

6005-ZZ Deep Groove Ball Bearing

Bearing Size:

25x47x12mm

Rows Number:

Single Row

Precision:

P0 P6 P5 P4

Tolerance Class:

ABEC-1, ABEC-3, ABEC-5, ABEC-7

Noise & Vibration:

ZV1 ZV2 ZV3 ZV4

Seal Type:

ZZ (Double Metal Shield)

Clearance:

C2, C0, C3, C4

Material:

Bearing Steel, Stainless Steel, Ceramic, Etc

Lubrication:

Grease Or Oil

HS Code:

8482102000

OEM Service:

Customization Welcomed

Aligning:

Non-aligning

Separated:

Unseparated

Load Direction:

Radial Direction

Packaging Details:

Single Package, Industrial/Tube Packing, Custom Packing

Supply Ability:

30,000,000 pcs per year

Highlight:

6005-ZZ Deep Groove Ball Bearing

P6 Precision Z3V3 Low Noise

Metal Shield Conveyor System Bearing

Product Description

1. Product Overview

6005-ZZ is a single-row deep groove ball bearing with double metal shields (ZZ), manufactured to ISO standard dimensions of 25×47×12mm. Made of high-purity GCr15 chrome bearing steel with P6 precision grade, this bearing delivers low noise (Z3V3) and smooth, stable rotation. The double-sided metal shield design effectively blocks dust, dirt and fine particles while retaining the factory-filled lubricating grease inside. Pre-lubricated and maintenance-free, the 6005-ZZ bearing is a versatile general-purpose component widely used in medium-speed industrial transmission and material handling equipment.

2. Core Product Features

P6 Precision Grade: ABEC-3 tolerance class ensures accurate shaft alignment, stable running and long equipment service life.
Z3V3 Low Noise Level: Optimized internal raceway and super-finished rolling surfaces minimize vibration and noise for quiet operation.
Double ZZ Metal Shield Protection: Non-contact steel shields prevent dust and debris ingress and avoid grease leakage in ordinary workshop environments.
High Speed Capability: Supports up to 13,000 r/min with grease lubrication and 17,000 r/min with oil lubrication.
Strong Load Capacity: Dynamic load rating of 10.1 kN and static load rating of 5.85 kN handle radial and light axial loads reliably.
Premium Material & Long Durability: High-purity GCr15 chrome bearing steel with overall heat treatment delivers high hardness, wear resistance and fatigue strength.
Maintenance-Free & Cost-Effective: Factory pre-lubricated with high-grade grease, reducing downtime and maintenance costs.

3. Technical Parameters

Parameter	Value
Bearing Model	6005-ZZ
Bore Diameter (d)	25 mm
Outer Diameter (D)	47 mm
Width (B)	12 mm
Chamfer Dimension (r)	0.6 mm
Dynamic Load Rating (Cr)	10.1 kN
Static Load Rating (Cor)	5.85 kN
Limiting Speed (Grease)	13,000 r/min
Limiting Speed (Oil)	17,000 r/min
Precision Grade	P6 (ABEC-3)
Noise & Vibration Level	Z3V3
Internal Clearance	C2, C0, C3, C4
Seal Type	ZZ Double Metal Shield
Material	GCr15 Chrome Bearing Steel
Weight	0.08 kg/pc

4. Wide Application Scenarios

The 6005-ZZ deep groove ball bearing is ideal for medium-speed, light-to-medium load rotating equipment:

Conveyor Systems & Material Handling: Conveyor rollers, belt conveyors, sorting lines and palletizing equipment.
Industrial Blowers & Fans: Centrifugal blowers, ventilation fans and cooling units.
Compressors & Generators: Small air compressors, generator sets and power equipment.
General Industrial Machinery: Gearboxes, pumps, textile and packaging machinery requiring dust protection.

Every 6005-ZZ bearing is strictly inspected for dimensions, hardness and noise level before delivery. We support bulk wholesale, OEM customization, customized packaging and fast global delivery.
