Electric Motor Bearing
Created with Pixso. 16 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635
Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name
  • Name

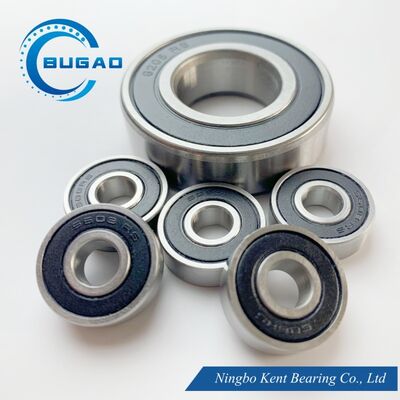

16 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635

Detail Information
Product Description
Detail Information
Product Description

Ningbo Kent bearing Co.,Ltd is located in Yuyao, Ningbo, Zhejiang, China. Our company is a factory specialized in designing and manufacturing a variety of high-precision, top quality ball bearings for electric motors, automobiles, household appliances, power tools, pumps, motorcycles, heavy vehicles, machines etc.


Our bearing advantages:

Strict dimensional tolerance, smooth rotation, high load capacity and high temperature resistance.

Custom specifications & OEM service available, stable supply and competitive price.

With years of experience in bearing manufacturing, we adhere to strict quality control standards (ISO 9001) to ensure each thin wall ball bearing meets the highest industry requirements. Our professional R&D team is dedicated to optimizing product performance, while our efficient supply chain ensures timely delivery and competitive pricing.


About ball bearings

We offer a comprehensive range of standard inch ball bearings. Customization options are available to meet your unique requirements, including:

Custom dimensions (ID/OD/width) to fit specific equipment

Special materials (stainless steel, ceramic balls) for corrosion resistance or high-temperature applications

Custom lubrication (food-grade grease, high-temperature grease)

Special sealing solutions for harsh environments



Bearing parameter

Bearing specification 16 Series



Basic Load Rating KN Ball Complement
Bearing NO. ID(mm)(inch) OD(mm)(inch) Width(mm)(inch) Radius(mm)(inch) Dynamic(C) Static(C0) NO. size(mm)
1601 4.763    .1875 17.463      .6875 6.350    .2500 0.3       .012 1.511 0.724 6 3.969
1602 6.350    .2500 17.463      .6875 6.350    .2500 0.3       .012 1.511 0.724 9 2.831
1603 7.938    .3125 22.225      .8750 7.144    .2812 0.3       .012 2.547 1.342 7 3.969
1604 9.525    .3750 22.225      .8750 7.144    .2812 0.3       .012 2.547 1.342 7 3.969
1605 7.938    .3125 23.019      .9062 7.938    .3125 0.3       .012 2.547 1.342 7 3.969
1606 9.525    .3750 23.019      .9062 7.938    .3125 0.3       .012 2.547 1.342 7 3.969
1607 11.113   .4375 23.019      .9062 7.938    .3125 0.3       .012 3.556 1.938 7 3.969
1614 9.525    .3750 28.575     1.1250 9.525    .3750 0.3       .012 3.921 2.245 8 4.763
1615 11.113   .4375 28.575     1.1250 9.525    .3750 0.3       .012 3.921 2.245 8 4.763
1616 12.700  .5000 28.575     1.1250 9.525    .3750 0.3       .012 3.921 2.245 8 4.763
1620 11.113   .4375 34.925     1.3750 11.113   .4375 0.6       .024 5.881 3.471 10 4.763
1621 12.700  .5000 34.925     1.3750 11.113   .4375 0.6       .024 5.881 3.471 10 4.763
1622 14.288  .5625 34.925     1.3750 11.113   .4375 0.6       .024 5.881 3.471 10 4.763
1623 15.875  .6250 34.925     1.3750 11.113   .4375 0.6       .024 5.881 3.471 10 4.763
1628 15.875  .6250 41.275     1.6250 12.7      .5000 0.6       .024 7.232 4.45 9 6.35
1630 19.050  .7500 41.275     1.6250 12.7      .5000 0.6       .024 7.232 4.45 9 6.35
1633 15.875  .6250 44.450     1.7500 12.7      .5000 1.0       .039 7.232 4.45 9 6.35
1635 19.050  .7500 44.450     1.7500 12.7      .5000 1.0       .039 7.232 4.45 9 6.35


16 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635 016 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635 116 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635 216 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635 3


Packing information


Normal packing: industrial packing/bulk per carton-pallet

16 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635 4

Special require: small white box/ small color box-carton-pallet


16 series inch size Z2 Z3 quality bearing wholesale price 1601 1602 1603 1604 1605 1606 1607 1614 1615 1616 1620 1621 1622 1623 1628 1630 1633 1635 5


Wide Range of Applications


Our ball bearings are widely used across various industries, thanks to their reliable performance and versatile design. Key application areas include:

Precision Instruments: Medical equipment (MRI machines, surgical tools), optical devices, measuring instruments, and laboratory equipment.

Automotive Industry: Electric vehicle components, automotive electronics, steering systems, transmission parts, and wheel hubs.

Aerospace & Defense: UAVs (drones), aircraft components, missile systems, and satellite equipment (where reliability and precision are critical).

Industrial Machinery: Robotics, CNC machines, textile machinery, printing equipment, industrial gearboxes, and conveyor systems.

Consumer Electronics: High-end cameras, precision motors, home appliances, and portable electronic devices.


FAQ


Do you have stock?

A: Most standard size bearings are in stock, fast delivery within 7-14 working days.

What about the MOQ?

A: Small order & sample order are welcome, mixed wholesale is supported.

What is your warranty policy?

A: We provide long-term quality warranty, any defective products can be replaced or refunded.

Can it work in high temperature?

A: High temperature resistant grease and high-temperature bearings are available, suitable for harsh working conditions.
