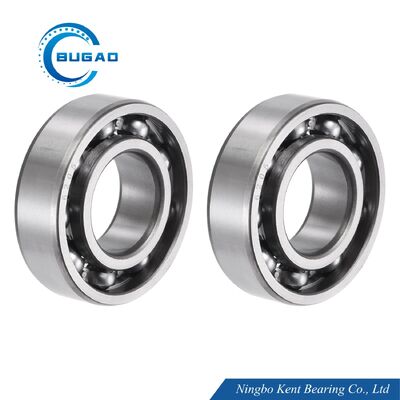

The 6205 Open Deep Groove Ball Bearing is a single-row, non-separable bearing designed for high-speed operation with minimal friction and low maintenance.

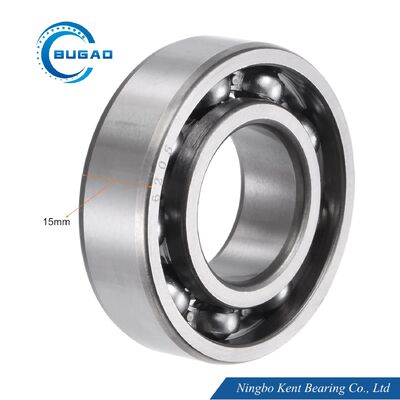

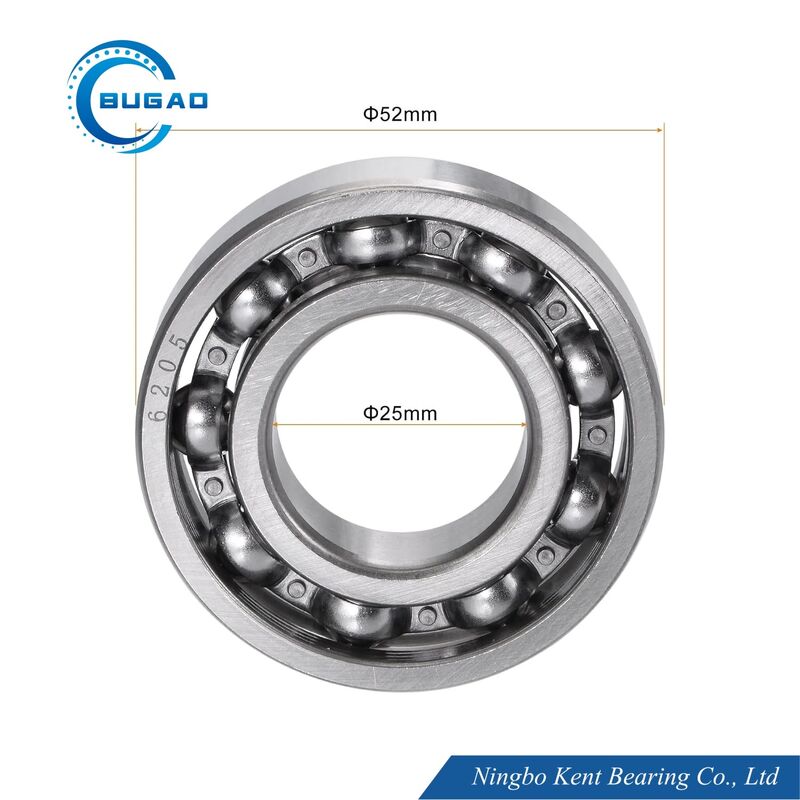

With bore diameter 25mm, outer diameter 52mm, and width 15mm, it fits a wide range of standard industrial housings and shafts.

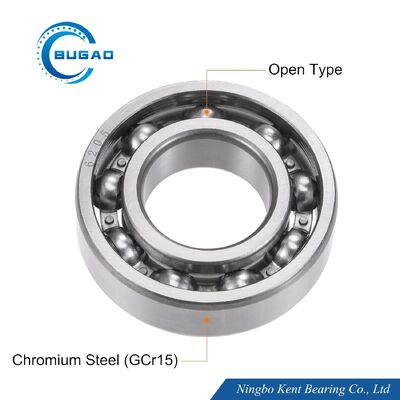

Its open design allows for easy relubrication, making it ideal for applications where regular grease replenishment is part of the maintenance routine.

High-Speed Capable. Precision-honed raceways and uniform ball geometry reduce friction, allowing smooth rotation at elevated speeds without excessive heat buildup.

Low Noise Operation. Available in noise grades Z1 through Z4, with vibration levels V1 through V4, meeting the strictest requirements for electric motors and quiet-running equipment.

Multiple Material Options. Standard bearing steel (GCr15) for general industrial use. Stainless steel for corrosive environments. Ceramic (Si3N4) for extreme speed or electrical insulation needs.

Precision Flexibility. Produced in P0, P6, P5, and P4 tolerance grades, covering everything from standard agricultural machinery to high-precision machine tool spindles.

Wide Lubrication Compatibility. Open design accepts both grease and oil lubrication systems. Compatible with standard lithium, polyurea, and high-temperature synthetic greases.

Easy Installation. Non-separable construction prevents assembly errors. Standard dimensional tolerances ensure drop-in compatibility with ISO housings worldwide.

The bearing features a pressed steel cage that securely spaces the balls while allowing efficient lubricant flow through the bearing.

Deep, continuous raceway grooves in both inner and outer rings provide a precise ball path, minimizing skidding and ensuring even load distribution across all rolling elements.

Super-finished ball surfaces (Grade 10 or better) reduce surface roughness, directly translating to quieter operation and extended grease life in service.

Designed for a wide range of industrial and commercial equipment where reliable rotation is critical.

• Electric Motors — Low-noise grades Z2/Z3 ensure quiet operation in residential and industrial motors.
• Water Pumps — Open design allows on-site regreasing during scheduled maintenance intervals.
• Fans & Blowers — High-speed capability supports continuous operation in HVAC and ventilation systems.
• Agricultural Machinery — Robust steel cage and standard tolerances handle demanding field conditions.
• Textile Machinery — Low vibration grades ensure smooth spindle rotation at high production speeds.
• Machine Tools — P4/P5 precision grades available for spindle and feed-axis applications.
• Automotive Components — Suitable for alternators, tensioner pulleys, and auxiliary drive systems.
• Medical Equipment — Stainless steel variant supports cleanroom and sterilization requirements.
• Semiconductor Industry — Ceramic hybrid option provides electrical insulation for sensitive electronics.
• Parking Systems & Automation — Long service life reduces maintenance downtime in access control mechanisms.
• Rail & Aviation Equipment — High-precision grades meet the reliability demands of transportation systems.

Every 6205 bearing is manufactured under ISO 9001:2015 certified quality management.

100% dimensional inspection and vibration testing on each production batch ensures consistency.

Bulk packaging with anti-rust treatment. Custom packaging and private labeling available for OEM orders.
