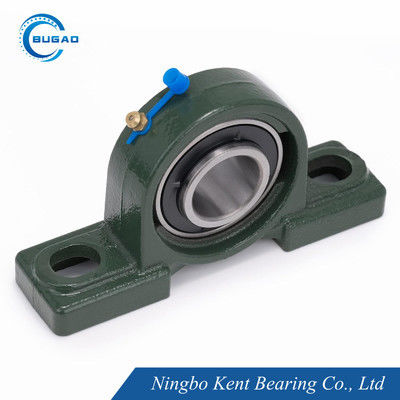

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment

Name: Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment
Brand: Ningbo Kent Bearing Co., Ltd
SKU: UCP206
Availability: InStock

Brand Name:	BUGAO
Model Number:	UCP206
MOQ:	Negotiatable
Price:	Negotiatable
Delivery Time:	5-7 Days
Payment Terms:	L/C,Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Certification:

ISO9001:2015

Bearing Name:

UCP206

Transport:

By Land Or Sea Or Air

Weight:

1.2kg

Samples:

Available

Static Load Rating:

49kN

Row Of Bearing:

Single Row

Shape:

Straight Cylinder/Flange/Open

Stock:

Rich

Deliver Time:

3-15 Days

Application:

Electric Motors

Service:

OEM ODM

Size:

Standard

Bearing Material:

Chrome Steel

Material Of Bearing:

Bearing Steel Or Stainless Steel

Cage Type:

Steel

Cage Material:

Steel

Packaging Details:

Single/Barrels Packing, Industrial/Tube Packing

Supply Ability:

30000000 sets

Highlight:

Self Aligning UCP 206 Bearing

Agricultural Machinery UCP 206 Bearing

Equipment UCP 206 Bearing

Product Description

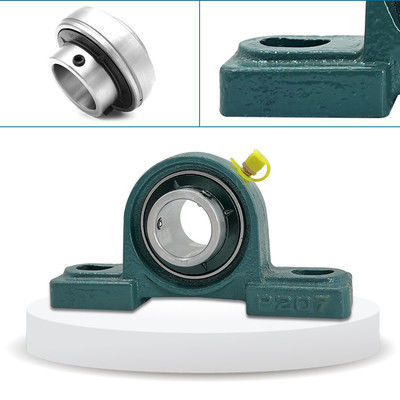

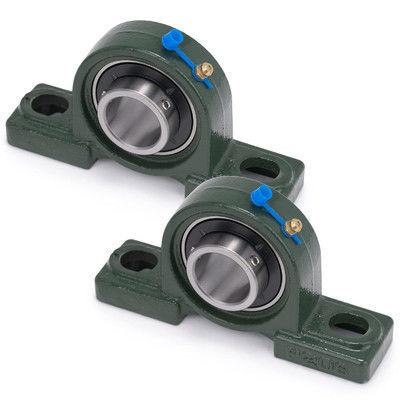

Pillow Block Bearing UCP206

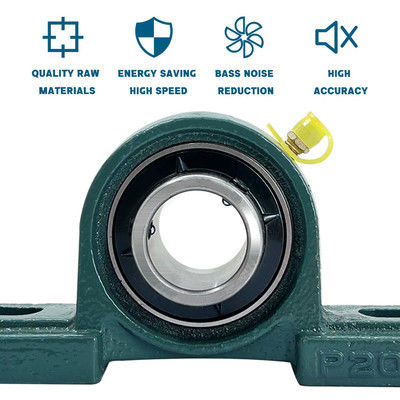

Features

1) Self-aligning function

2) Large radial road capacity

3) Long operation life

4) Good sealing performance

5) Strong bearing housing

6) Easy to install

Main application areas
1 Conveying equipment
Belt conveyors, chain conveyors, roller lines, etc., support conveyor rollers or drive shafts and bear radial loads.
For example: conveyor belt systems in food processing, mining, and logistics industries.
2 Agricultural machinery
Tractors, harvesters, seeders, etc., used to support drive shafts, pulleys or walking parts, adapted to dusty and humid environments.
3 Industrial fans and pumps
Cooling tower fans, centrifugal pumps, etc., support impeller shafts, and require sealing designs to prevent water vapor or corrosive media from invading.
4 Food and packaging machinery
Filling machines, labeling machines, etc., often use stainless steel seat bearings to meet hygiene and corrosion resistance requirements.
5 Construction and engineering machinery
Mixers, cranes, etc., bear heavy loads and vibrations, and often use cast iron or heavy-duty bearing seats.
6 Textile machinery
The guide roller support of spinning machines and looms requires low noise and high-speed operation.
7 Simple transmission system
The output shaft support of small motors and reducers simplifies the installation structure.

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 0

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 1

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 2

Customization Welcomed:

We can print your brand (logo,artwork) on the shield or laser engraving your brand on the shield.

We can custom your packaging according to your design.

All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing

Shipping method is negotiable.

Other Technical Data of Bearing

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 3

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 4

Company Brand KYODO YUSHI	Product	Base Oil	Usage Range	Characteristics


EXXON	Multemp SRL	Polyol ester+Diester	(-50,+150)	Excellent noise suppressantproperty and extended performance life
	Multemp PS	Diester+Refined mineral oil	(-50,+130)	Excellent low temperature performance,has outstanding noise suppressant property
	Multemp SM-B	Synthetic hydrocarbon	(-50,+200)	Long service life under high temperature,Excellent low temperature performance,has high speed operation,low noise property
	Multemp ET-K	SyntheticEther +Polyol ester	(-40≥,+200)	Has more extended life under high operating temperature condition
MOBILE	Polyrex EM	Mineral grease	(-40,+180)	Long life and high temperature
	Beacon325	Synthetic grease	(-54,+150)	General purpose grease
	Andok C	Channeling petroleum grease	(-27,+120)	Smooth running,long life with minimum migration
CHEVRON	Mobil 28(MIL-G-81322)	Synthetic hydrocarbon	(-54,+177)	Wide temperature range,good low temperature torque
CHEVRON	Mobil HP	Lithium complex	(-30,+110)	Vibration,moderate speed and good corrosion resistance
SHELL	SRI-2	Mineral grease	(-30,+180)	High temperature range,good water resistance
DUPONT	Alvania 2	Mineral grease	(-35,+120)	Long life and high temperature
DUPONT	RLQ #2	Mineral grease	(-50,+150)	Low noise,high speed and high temperature
KLUBER	ASONIC	Synthetic hydrocarbon	(-50,+140)	High temperature stability with good lubricity properties
JINZHI	HANGU 2#	Mineral grease	(-20,+120)	Low noise
JINZHI	HTHS	Mineral grease	(-40,+180)	High speed,low temperature,low torque and low noise

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 5

The Radial Clearance of Bearings with Electric Motor Quality

Bore			CM
Over		Including		Min	Max
mm	inch	mm	inch	um	um
10	0.3937	18	0.7087	4	11
18	0.7087	24	0.9449	5	12
24	0.9449	30	1.1811	5	12
30	1.1811	40	1.5748	9	17
40	1.5748	50	1.9685	9	17
50	1.9685	65	2.5591	12	22

Datas of The Mini-deep Groove Bearings under No Load as Followed:										Tolerance in um
Bore				Inch R Series	C2		NORMAL		C3		C4
Over		Including			C2		NORMAL		C3		C4
mm	inch	mm	inch		min	max	min	max	min	max	min
2.5	0.0984	10	0.3937	R2-R6	0	7	2	13	8	23	14
10	0.3937	18	0.7087	R8-R10	0	9	3	18	11	25	18
18	0.7087	24	0.9449	R12-R14	0	10	5	20	13	58	20
24	0.9449	30	1.1811	R16-18	1	11	5	20	13	28	23
30	1.1811	40	1.5748	R20-R24	1	11	6	20	15	33	28
40	1.5748	50	1.9685		1	11	6	23	18	36	30
50	1.9685	65	2.5591		1	12	8	28	23	43	38

Datas of The Mini-deep Groove Bearings under No Load as Followed:									Tolerance in um
Clearance Code	MC1		MC2		MC3		MC4		MC5
Clearance	min	max	min	max	min	max	min	max	min	max
Clearance	1	6	4	9	6	11	9	14	15	22

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 6

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Tags:

Products Details

Home Products

Miniature Bearing

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment

All Category

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment

Brand Name:	BUGAO
Model Number:	UCP206
MOQ:	Negotiatable
Price:	Negotiatable
Packaging Details:	Single/Barrels Packing, Industrial/Tube Packing
Payment Terms:	L/C,Western Union,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Brand Name:

BUGAO

Certification:

ISO9001:2015

Model Number:

UCP206

Bearing Name:

UCP206

Transport:

By Land Or Sea Or Air

Weight:

1.2kg

Samples:

Available

Static Load Rating:

49kN

Row Of Bearing:

Single Row

Shape:

Straight Cylinder/Flange/Open

Stock:

Rich

Deliver Time:

3-15 Days

Application:

Electric Motors

Service:

OEM ODM

Size:

Standard

Bearing Material:

Chrome Steel

Material Of Bearing:

Bearing Steel Or Stainless Steel

Cage Type:

Steel

Cage Material:

Steel

Minimum Order Quantity:

Negotiatable

Price:

Negotiatable

Packaging Details:

Single/Barrels Packing, Industrial/Tube Packing

Delivery Time:

5-7 Days

Payment Terms:

L/C,Western Union,T/T

Supply Ability:

30000000 sets

Highlight:

Self Aligning UCP 206 Bearing

Agricultural Machinery UCP 206 Bearing

Equipment UCP 206 Bearing

Product Description

Pillow Block Bearing UCP206

Features

1) Self-aligning function

2) Large radial road capacity

3) Long operation life

4) Good sealing performance

5) Strong bearing housing

6) Easy to install

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 0

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 1

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 2

Customization Welcomed:

We can print your brand (logo,artwork) on the shield or laser engraving your brand on the shield.

We can custom your packaging according to your design.

All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing

Shipping method is negotiable.

Other Technical Data of Bearing

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 3

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 4

Company Brand KYODO YUSHI	Product	Base Oil	Usage Range	Characteristics


EXXON	Multemp SRL	Polyol ester+Diester	(-50,+150)	Excellent noise suppressantproperty and extended performance life
	Multemp PS	Diester+Refined mineral oil	(-50,+130)	Excellent low temperature performance,has outstanding noise suppressant property
	Multemp SM-B	Synthetic hydrocarbon	(-50,+200)	Long service life under high temperature,Excellent low temperature performance,has high speed operation,low noise property
	Multemp ET-K	SyntheticEther +Polyol ester	(-40≥,+200)	Has more extended life under high operating temperature condition
MOBILE	Polyrex EM	Mineral grease	(-40,+180)	Long life and high temperature
	Beacon325	Synthetic grease	(-54,+150)	General purpose grease
	Andok C	Channeling petroleum grease	(-27,+120)	Smooth running,long life with minimum migration
CHEVRON	Mobil 28(MIL-G-81322)	Synthetic hydrocarbon	(-54,+177)	Wide temperature range,good low temperature torque
CHEVRON	Mobil HP	Lithium complex	(-30,+110)	Vibration,moderate speed and good corrosion resistance
SHELL	SRI-2	Mineral grease	(-30,+180)	High temperature range,good water resistance
DUPONT	Alvania 2	Mineral grease	(-35,+120)	Long life and high temperature
DUPONT	RLQ #2	Mineral grease	(-50,+150)	Low noise,high speed and high temperature
KLUBER	ASONIC	Synthetic hydrocarbon	(-50,+140)	High temperature stability with good lubricity properties
JINZHI	HANGU 2#	Mineral grease	(-20,+120)	Low noise
JINZHI	HTHS	Mineral grease	(-40,+180)	High speed,low temperature,low torque and low noise

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 5

The Radial Clearance of Bearings with Electric Motor Quality

Bore			CM
Over		Including		Min	Max
mm	inch	mm	inch	um	um
10	0.3937	18	0.7087	4	11
18	0.7087	24	0.9449	5	12
24	0.9449	30	1.1811	5	12
30	1.1811	40	1.5748	9	17
40	1.5748	50	1.9685	9	17
50	1.9685	65	2.5591	12	22

Datas of The Mini-deep Groove Bearings under No Load as Followed:										Tolerance in um
Bore				Inch R Series	C2		NORMAL		C3		C4
Over		Including			C2		NORMAL		C3		C4
mm	inch	mm	inch		min	max	min	max	min	max	min
2.5	0.0984	10	0.3937	R2-R6	0	7	2	13	8	23	14
10	0.3937	18	0.7087	R8-R10	0	9	3	18	11	25	18
18	0.7087	24	0.9449	R12-R14	0	10	5	20	13	58	20
24	0.9449	30	1.1811	R16-18	1	11	5	20	13	28	23
30	1.1811	40	1.5748	R20-R24	1	11	6	20	15	33	28
40	1.5748	50	1.9685		1	11	6	23	18	36	30
50	1.9685	65	2.5591		1	12	8	28	23	43	38

Datas of The Mini-deep Groove Bearings under No Load as Followed:									Tolerance in um
Clearance Code	MC1		MC2		MC3		MC4		MC5
Clearance	min	max	min	max	min	max	min	max	min	max
Clearance	1	6	4	9	6	11	9	14	15	22

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment 6

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Tags:

Electric Motor Bearing

Deep Groove Ball Bearing

6000 Series Bearing

6200 Series Bearing

6300 Series Bearing

6800 Series Bearing

6900 Series Bearing

High Precision Bearing

P6 Bearing

P5 Bearing

P4 Bearing

Miniature Bearing

Non Standard Bearing

Electric Motor Bearing

Deep Groove Ball Bearing

6000 Series Bearing

6200 Series Bearing

6300 Series Bearing

6800 Series Bearing

6900 Series Bearing

High Precision Bearing

P6 Bearing

P5 Bearing

P4 Bearing

Miniature Bearing

Non Standard Bearing

products details

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment

Self Aligning UCP 206 Bearing

Agricultural Machinery UCP 206 Bearing

Equipment UCP 206 Bearing

Products Details

Electric Motor Bearing

Deep Groove Ball Bearing

6000 Series Bearing

6200 Series Bearing

6300 Series Bearing

6800 Series Bearing

6900 Series Bearing

High Precision Bearing

P6 Bearing

P5 Bearing

P4 Bearing

Miniature Bearing

Non Standard Bearing

Self Aligning UCP 206 Bearing For Agricultural Machinery and Equipment

Self Aligning UCP 206 Bearing

Agricultural Machinery UCP 206 Bearing

Equipment UCP 206 Bearing
