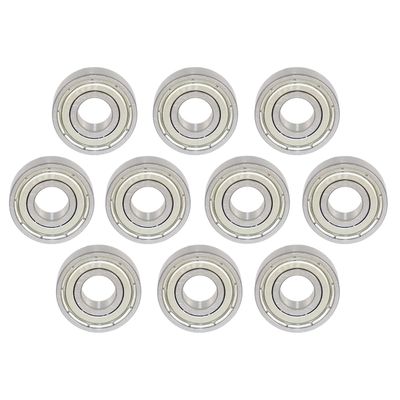

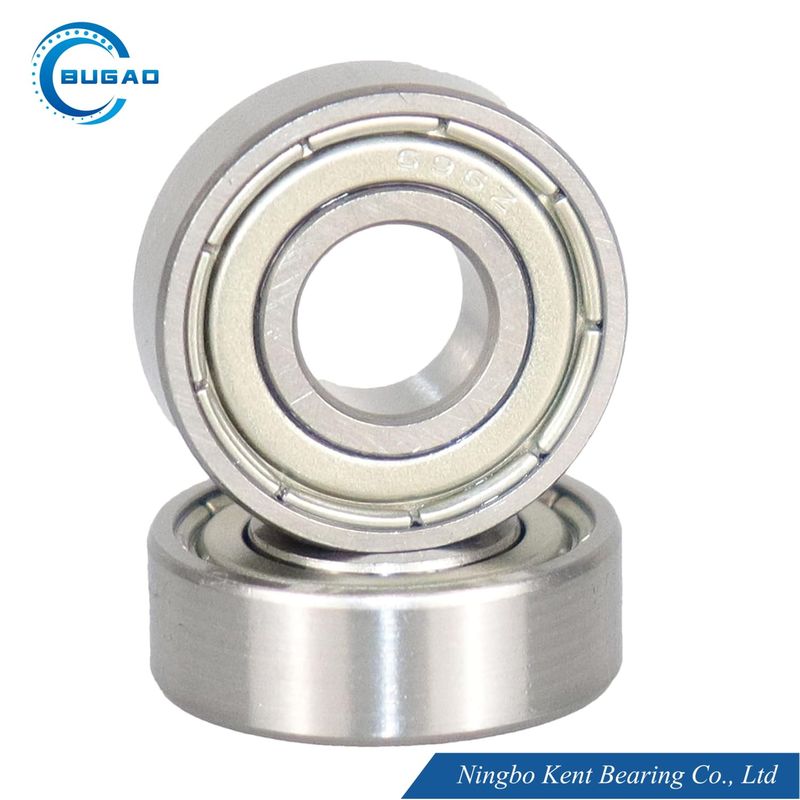

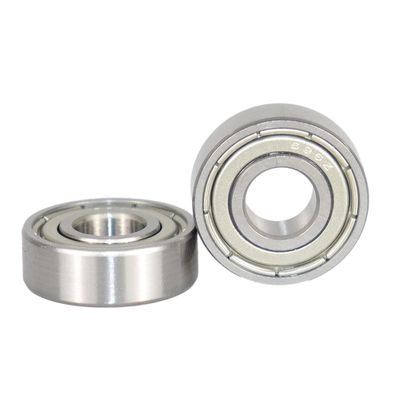

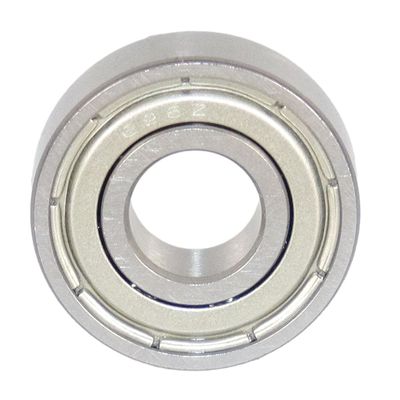

High Speed 696 ZZ Bearing Miniature Bearing 6x15x5mm

Name: High Speed 696 ZZ Bearing Miniature Bearing 6x15x5mm
Brand: Ningbo Kent Bearing Co., Ltd
SKU: 696-ZZ
Availability: InStock

Brand Name:	BUGAO
Model Number:	696-ZZ
MOQ:	Negotiable
Price:	Negotiable
Delivery Time:	2-5days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO9001:2015

Bearing Name:

696 ZZ Bearing

Bearing Material:

Bearing Steel/Stainless Steel/Ceramic

Precision Of Bearing:

P0, P6, P5, P4

Seal & Sheild:

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise Level Of Bearing:

Z1V1, Z2V2, Z3V3,Z4V4

Clearance Of Bearing:

C2, C0, C3, C4

Aligning:

Non-aligning

Packaging:

Individual Packing, Tube Packing, Custom Packing

Services:

OEM ODM

Seperated:

Unseperated

Lubrication:

Grease Or Oil

Rows Number:

Single Row

Certificate:

ISO9001:2015

Packaging Details:

Single/Barrel/Individual packing, Industrial/Tube Packing, Custom Packing

Supply Ability:

30,000,000 sets per year

Highlight:

High Speed 696 ZZ Bearing

696 ZZ Bearing Miniature

696 2RS Bearing 6x15x5mm

Product Description

‌Introduction to 696 ZZ Bearings: Compact Power for Precision Applications‌

The High-Speed 696 ZZ Bearing is a compact, high-performance ball bearing designed for high-speed applications requiring precision and durability. Ideal for small electric motors, precision equipment, and hobbyist projects. With dimensions of 6x15x5 mm, it offers excellent load capacity and smooth operation. The ZZ variant provides dustproof protection.

Key Features:

Type: Single Row Deep Groove Ball Bearing
Shields/Seals:
- 696 ZZ: Double Metal Shields (dustproof)
Dimensions: 6x15x5 mm (Inner Diameter x Outer Diameter x Width)
Load Capacity: Handles both radial and axial loads
Material: High-grade steel for durability and wear resistance
Application Focus: Small electric motors, precision equipment, and hobbyist projects

Performance Highlights:

High-Speed Capability: Designed for high-speed applications, ensuring smooth and efficient operation.
Contamination Protection:
- 696 ZZ: Double metal shields provide dustproof protection.
Compact Design: The small size (6x15x5 mm) makes it ideal for compact applications like small motors and precision equipment.
Durability: Made from high-quality steel, the bearing is resistant to wear and corrosion, ensuring long-lasting performance.
Smooth Operation: Precision engineering ensures low friction and quiet performance.

Dimensions:

The 696 bearing has the following standard dimensions:

Parameter	Value (mm)
Inner Diameter (d)	6 mm
Outer Diameter (D)	15 mm
Width (B)	5 mm

Applications:

Small Electric Motors: Provides reliable performance in compact motors for appliances, drones, and hobbyist projects.
Precision Equipment: Suitable for high-accuracy machinery such as CNC machines and robotics.
Household Appliances: Used in fans, blenders, and other small appliances requiring quiet operation.
Hobbyist Projects: Perfect for DIY projects requiring compact, high-performance bearings.
Medical Devices: Used in lightweight medical equipment where precision and cleanliness are critical.

Advantages:

High-Speed Performance: Optimized for high-speed operation, ensuring smooth and efficient performance.
Contamination Protection:
- 696 ZZ: Double metal shields for dustproof protection.
Compact Size: The small and lightweight design is ideal for compact applications like small motors and precision equipment.
Durability: Resistant to wear and corrosion, ensuring long-lasting performance.
Smooth Operation: Precision engineering ensures low friction and quiet performance.

Technical Parameters of Power Tool Ball bearings:

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight Kg/pc
									Basic Load Rating KN		Maximum Run out Speed
									Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
	mm	inch	mm	inch	mm	inch	mm	inch	C	C_O	r/min	r/min
604	4	0.1575	12	0.4724	4	0.1575	0.2	0.008	0.97	0.36	43000	51000	0.002
605	5	0.1969	14	0.5512	5	0.1969	0.2	0.008	1.33	0.505	39000	46000	0.0035
606	6	0.2362	17	0.6693	6	0.2362	0.3	0.012	2.24	0.91	28000	36000	0.008
607	7	0.2756	19	0.7480	6	0.2362	0.3	0.012	2.24	0.91	28000	36000	0.008
608	8	0.3149	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.012
609	9	0.3543	24	0.9449	7	0.2756	0.3	0.012	3.4	1.45	22000	30000	0.014
6000	10	0.3937	26	1.0236	8	0.3150	0.3	0.012	4.55	1.96	20000	28000	0.019
6001	12	0.4724	28	1.1024	8	0.3150	0.3	0.012	5.1	2.39	19000	26000	0.021
6002	15	0.5906	32	1.2598	9	0.3543	0.3	0.012	5.6	2.84	18000	24000	0.03
6003	17	0.6693	35	1.3780	10	0.3937	0.3	0.012	6.8	3.35	17000	22000	0.039
6004	20	0.7874	42	1.6535	12	0.4724	0.6	0.024	9.4	5.05	15000	19000	0.069
6005	25	0.9843	47	1.8504	12	0.4724	0.6	0.024	10.1	5.85	13000	17000	0.08
6006	30	1.1811	55	2.1654	13	0.5118	1.0	0.039	13.2	8.3	12000	15000	0.116

Customization:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

Other Technical Data of Ball Bearings

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50

Tags:

Products Details

Home Products

Electric Motor Bearing

High Speed 696 ZZ Bearing Miniature Bearing 6x15x5mm

All Category

High Speed 696 ZZ Bearing Miniature Bearing 6x15x5mm

Brand Name:	BUGAO
Model Number:	696-ZZ
MOQ:	Negotiable
Price:	Negotiable
Packaging Details:	Single/Barrel/Individual packing, Industrial/Tube Packing, Custom Packing
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

BUGAO

Certification:

ISO9001:2015

Model Number:

696-ZZ

Bearing Name:

696 ZZ Bearing

Bearing Material:

Bearing Steel/Stainless Steel/Ceramic

Precision Of Bearing:

P0, P6, P5, P4

Seal & Sheild:

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise Level Of Bearing:

Z1V1, Z2V2, Z3V3,Z4V4

Clearance Of Bearing:

C2, C0, C3, C4

Aligning:

Non-aligning

Packaging:

Individual Packing, Tube Packing, Custom Packing

Services:

OEM ODM

Seperated:

Unseperated

Lubrication:

Grease Or Oil

Rows Number:

Single Row

Certificate:

ISO9001:2015

Minimum Order Quantity:

Negotiable

Price:

Negotiable

Packaging Details:

Single/Barrel/Individual packing, Industrial/Tube Packing, Custom Packing

Delivery Time:

2-5days

Payment Terms:

T/T

Supply Ability:

30,000,000 sets per year

Highlight:

High Speed 696 ZZ Bearing

696 ZZ Bearing Miniature
