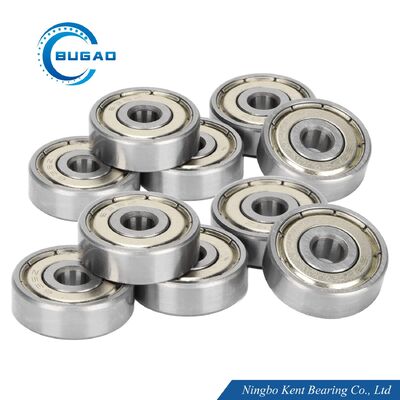

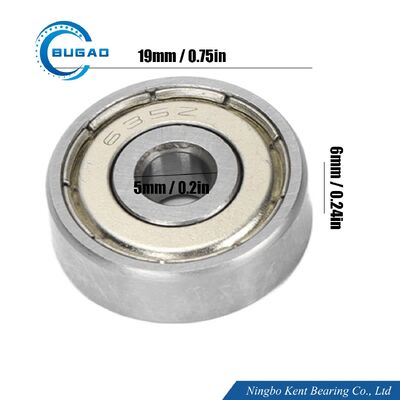

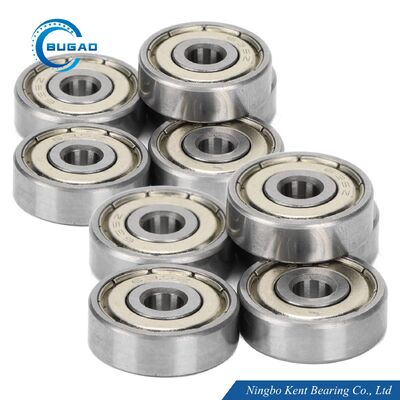

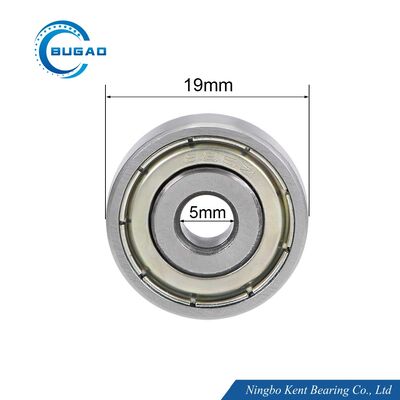

The 635-2RS is a high-performance miniature deep groove ball bearing designed for versatile industrial and commercial applications. As a core part of rotating machinery, it features a double-sided contact seal structure that ensures reliable operation in various environments. This bearing model boasts standardized dimensions, with an inner diameter of 5 mm (0.197 inch), outer diameter of 19 mm (0.748 inch), and width of 6 mm (0.236 inch), along with a minimum radius of 0.3 mm, making it suitable for installation in space-constrained equipment.

Key Product Features

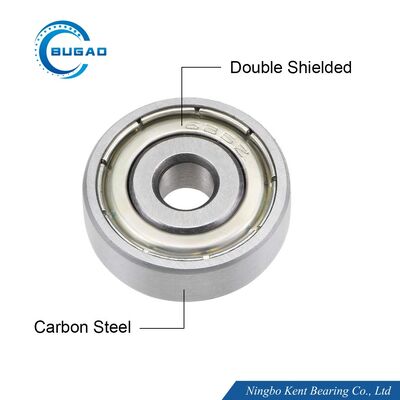

Superior Sealing Performance: Equipped with double-sided rubber contact seals, the 635-2RS effectively prevents the ingress of dust, moisture, and contaminants . This sealing design significantly extends operational lifespan by reducing lubricant loss and internal component wear .
High-Speed Capability: Optimized with super-finished raceways and controlled geometries, this bearing supports exceptional high-speed operation. It achieves a limiting speed of up to 38,000 rpm under grease lubrication and 45,000 rpm with oil lubrication, making it suitable for high-rotation applications .
Versatile Load-Bearing Capacity: As a single-row deep groove ball bearing, it accommodates both radial and axial loads in both directions. With a dynamic load rating of 2300 N and a static load rating of 890 N, it performs reliably in light to moderate duty scenarios .
Durable Material Construction: The standard version is crafted from high-quality chrome steel for inner/outer rings and balls, paired with a pressed steel cage for structural stability. For specialized demands, optional full ceramic versions are available, offering superior heat resistance, corrosion resistance, non-magnetic properties, and electrical insulation .
Low Maintenance & Easy Installation: Factory pre-lubrication eliminates the need for additional lubrication before initial use. Its cylindrical bore design and compact size (net weight only 0.0081 kg) enable easy mounting in space-constrained equipment, requiring minimal maintenance compared to other bearing types .

Application Scenarios
The 635-2RS bearing's versatility makes it suitable for a wide range of industries and applications, spanning general-purpose, recreational, and specialized high-performance fields:

1. General Industrial & Household Applications

- Household electrical appliances: Electric fans, air conditioners, small water pumps, and kitchen appliances.

- Industrial equipment: Small motors, encoders, stepping motors, flow meters, and automation components .

- Light machinery: Printing machinery, binding machines, and small conveyor systems.

2. Recreational & Hobby Equipment

- Remote-controlled (RC) vehicles: RC cars, RC planes, and RC helicopters .

- Hobby tools & robotics: Miniature drills, model engines, and hobby robot rotating components.

3. Automotive & Transportation

- Automotive accessories: Windshield wipers, throttle systems, and alternator components .

- Two-wheelers: Motorcycle and scooter auxiliary rotating parts.

4. Specialized High-Performance Applications (Ceramic Version)

- Medical equipment: MRI machines (non-magnetic requirement), surgical instruments, dental drills, and pulmonary assist devices .

- Aerospace & precision machinery: Satellite gyroscopes, guidance systems, and high-speed precision machine tool spindles .

- High-performance vehicles: Racing car and motorcycle components requiring high-speed operation and heat resistance .

- Corrosive environments: Chemical processing equipment and marine auxiliary systems (benefiting from ceramic material's corrosion resistance
