Electric Motor Bearing Double Rubber Seal 606 Bearing P6 P5 Clearances

Name: Electric Motor Bearing Double Rubber Seal 606 Bearing P6 P5 Clearances
Brand: Ningbo Kent Bearing Co., Ltd
SKU: 609-2RS, 609ZZ, 609
Availability: InStock

Brand Name:	Bugao
Model Number:	609-2RS, 609ZZ, 609
MOQ:	1,000 pcs
Price:	Negotiable
Delivery Time:	Negotiable
Payment Terms:	T/T,L/C,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015

Bearing Name:

Electric Motor Bearing

Material Of Bearing:

Bearing Steel, Stainless Steel, Ceramic

Precision Of Bearing:

P0, P6, P5, P4

Seal & Sheild Of Bearing:

Open, Z, ZZ, RZ, 2RZ, RS, 2RS

Noise Level Of Bearing:

Z1V1, Z2V2, Z3V3, Z4V4

Clearance Of Bearing:

C2, C0, C3, C4

Bearing Life:

Up To 10 Years

Row Of Bearing:

Single Row

Tolerance Class:

ABEC-1, ABEC-3, ABEC-5, ABEC-7

HS Code:

8482102000

Stock:

Rich

OEM Service:

Customization Welcomed

Packaging Details:

Single packing, Industrial/Tube Packing, Custom Packing

Supply Ability:

30,000,000 pcs peryear

Highlight:

9x24x7mm Electric Motor Bearing

Double Rubber Seal 609 2RS Bearing

609 2RS Bearing P5

Product Description

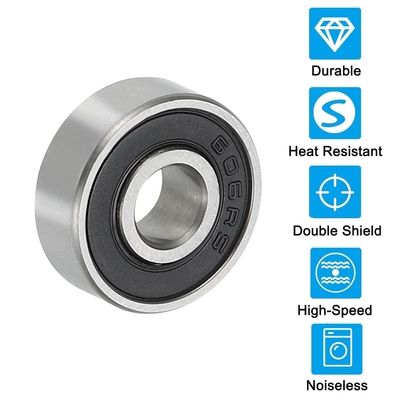

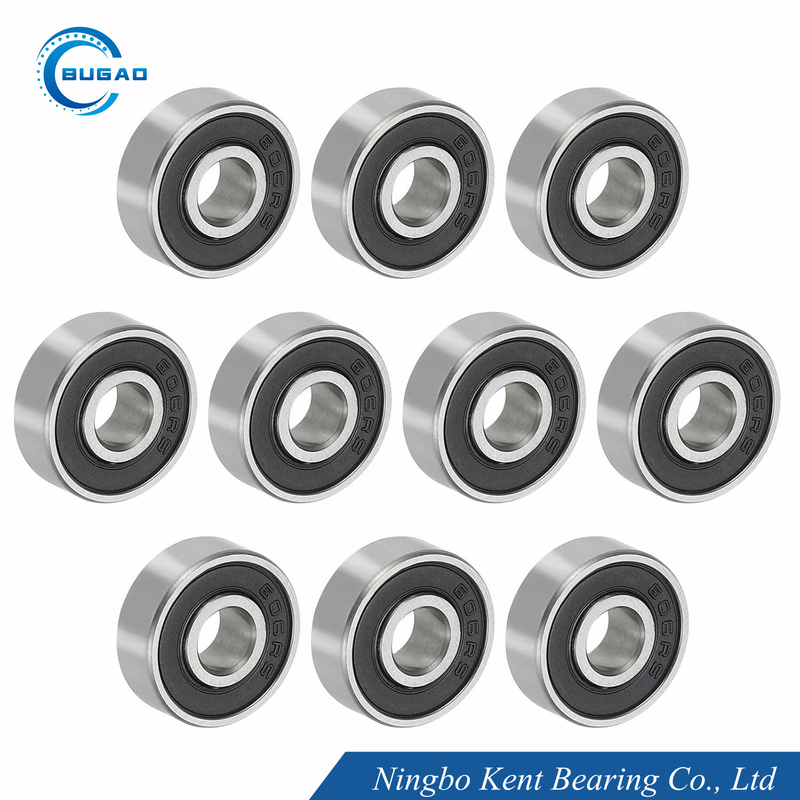

Bearing Manufacturer 606-2RS Double Rubber Sealed Bearings Pulley Bearing For Air Conditioner Motor Juicer Motor

· 【Size】- 6x17x6mm(Inner DiaxOuter DiaxThickness); Material:Gcr15; Model:606-2RS; Accuracy class: P6, P5

· 【High Quality】- The bearings is made of bearing steel for durability and resistance to rust, corrosion and deformity under heavy loads

· 【Feature】- Rolling bearings use rolling elements to maintain the separation between moving parts to reduce rotational friction and support radial and axial loads,and it has small friction and high-limit speed

· 【Strictly Shielded】- The bearing has shield to keep lubricant in and contaminants out; protects the working parts of the bearing from environmental debris that may be introduced and could reduce the ball bearing speed and lifespan

· 【Application】- Rolling bearings are used in a range of applications from agricultural machinery to conveying equipment,robotics,dental equipment, elevators, rolling mills, ship rudder shafts, aggregate crushers,skateboards, inline skates, and scooters, among others

Technical Parameters of 6000 Series Bearing:

Household electrical motors usually use small size bearings such as 606 to 6005 models and 629 to 6205 models, Below is detailed specification chart

Electric Motor Bearing Double Rubber Seal 606 Bearing P6 P5 Clearances 0

Basic Bearing No.	Bore d		Outer Diameter D		Width W		Radius r		Basic Load Rating KN		Maximum Run out Speed		Weight Kg/pc
									Basic Load Rating KN		Maximum Run out Speed
									Dynamic	Static	Grease	Oil
									Dynamic	Static	Grease	Oil
	mm	inch	mm	inch	mm	inch	mm	inch	C	C_O	r/min	r/min
604	4	0.1575	12	0.4724	4	0.1575	0.2	0.008	0.97	0.36	43000	51000	0.002
605	5	0.1969	14	0.5512	5	0.1969	0.2	0.008	1.33	0.505	39000	46000	0.0035
606	6	0.2362	17	0.6693	6	0.2362	0.3	0.012	2.24	0.91	28000	36000	0.008
607	7	0.2756	19	0.7480	6	0.2362	0.3	0.012	2.24	0.91	28000	36000	0.008
608	8	0.3149	22	0.8661	7	0.2756	0.3	0.012	3.35	1.4	26000	34000	0.012
609	9	0.3543	24	0.9449	7	0.2756	0.3	0.012	3.4	1.45	22000	30000	0.014
6000	10	0.3937	26	1.0236	8	0.3150	0.3	0.012	4.55	1.96	20000	28000	0.019
6001	12	0.4724	28	1.1024	8	0.3150	0.3	0.012	5.1	2.39	19000	26000	0.021
6002	15	0.5906	32	1.2598	9	0.3543	0.3	0.012	5.6	2.84	18000	24000	0.03
6003	17	0.6693	35	1.3780	10	0.3937	0.3	0.012	6.8	3.35	17000	22000	0.039
6004	20	0.7874	42	1.6535	12	0.4724	0.6	0.024	9.4	5.05	15000	19000	0.069
6005	25	0.9843	47	1.8504	12	0.4724	0.6	0.024	10.1	5.85	13000	17000	0.08
6006	30	1.1811	55	2.1654	13	0.5118	1.0	0.039	13.2	8.3	12000	15000	0.116
6007	35	1.3780	62	2.4409	14	0.5512	1.0	0.039	16	10.3	10000	13000	0.155
6008	40	1.5748	68	2.6772	15	0.5906	1.0	0.039	16.8	11.5	8000	11000	0.185
6009	45	1.7717	75	2.9528	16	0.6299	1.0	0.039	21	15.1	7200	9000	0.231
6010	50	1.9685	80	3.1496	16	0.6299	1.0	0.039	21.8	16.6	6400	7800	0.25
6011	55	2.1654	90	3.5433	18	0.7087	1.1	0.043	28.3	21.2	5700	7000	0.362
6012	60	2.3622	95	3.7402	18	0.7087	1.1	0.043	29.5	23.2	5000	6300	0.385
6013	65	2.9551	100	3.9370	18	0.7087	1.1	0.043	31.9	25	4800	6100	0.44
6014	70	2.7559	110	4.3307	20	0.7874	1.1	0.043	39.7	31	4600	5800	0.6
6015	75	2.9528	115	4.5276	20	0.7874	1.1	0.043	41.6	33.5	4400	5600	0.64

Applications of ball bearings:

Electric Motor Bearing Double Rubber Seal 606 Bearing P6 P5 Clearances 1

Customizations:

We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
We can custom your packaging according to your design.
All copyright owned by clients and we promised don't disclose any information.

Packing and Shipping:

The deep groove ball bearings will be securely packaged individually, or tube packing or packed as customization packing
Shipping method is negotiable.

Electric Motor Bearing Double Rubber Seal 606 Bearing P6 P5 Clearances 3

Other Technical Data of Ball Bearings

Electric Motor Bearing Double Rubber Seal 606 Bearing P6 P5 Clearances 4

ABEC-1 Tolerance Class ABEC-1 (P0)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
1)0.6	2.5	0	-8	10	8	6	6	10	0	-40	12
2.5	10	0	-8	10	8	6	6	10	0	-120	15
10	18	0	-8	10	8	6	6	10	0	-120	20
18	30	0	-10	13	10	8	8	13	0	-120	20
30	50	0	-12	15	12	9	9	15	0	-120	20
50	80	0	-15	19	19	11	11	20	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-8	10	8	6	10	6	15	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-8	10	8	6	10	6	15
18	30	0	-9	12	9	7	12	7	15
30	50	0	-11	14	11	8	16	8	20
50	80	0	-13	16	13	10	20	10	25
80	120	0	-15	19	19	11	26	11	35
120	150	0	-18	23	23	14	30	14	40

ABEC-3 Tolerance Class ABEC-3 (P6)

Inner Ring									Tolerance in um/s
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
d mm		Δdmp		9	Vdp²)0,1 Diameter Series	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max			max	max	high	low	max
11)0.6	2.5	0	-7	9	7	5	5	5	0	-40	12
2.5	10	0	-7	9	7	5	5	6	0	-120	15
10	18	0	-7	9	7	5	5	7	0	-120	20
18	30	0	-8	10	8	6	6	8	0	-120	20
30	50	0	-10	13	10	8	8	10	0	-120	20
50	80	0	-12	15	15	9	9	10	0	-150	25

Outer Ring									Tolerance in um/s
D mm		Δdmp		VDp²)⁴)Open Bearings Diameter Series			Capped Bearings²)³)	Vdmp	Kia	ΔBs		Vbs
D mm		Δdmp		9	0,1	2,3,4	2,3,4	Vdmp	Kia	ΔBs		Vbs
over	including	high	low	max				max	max	high	low	max
1)2.5	6	0	-7	9	7	5	9	5	8	Identical to ΔBs and VBs of inner ring of same bearing
6	18	0	-7	9	7	5	9	5	8
18	30	0	-8	10	8	6	10	6	9
30	50	0	-9	11	9	7	13	7	10
50	80	0	-11	14	11	8	16	8	13
80	120	0	-13	16	16	10	20	10	18
120	150	0	-15	19	19	11	25	11	20

ABEC-5 Tolerance Class ABEC-5 (P5)

Inner Ring									Tolerance in um/s
d mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
d mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	Sd	Sis³⁾	ΔBs	Vbs
over	including	high	low	max		3	max	max	max	High	Low	max
1)0.6	2.5	0	-5	5	4	3	4	7	7	0	-40	5
2.5	10	0	-5	5	4	3	4	7	7	0	-40	5
10	18	0	-5	5	4	3	4	7	7	0	-80	5
18	30	0	-6	6	5	3	4	8	8	0	-120	5
30	50	0	-8	8	6	4	5	8	8	0	-120	5
50	80	0	-9	9	7	5	5	8	8	0	-150	6

Outer Ring									Tolerance in um/s
D mm		Δdmp		Vdp²)Diameter Series		Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
D mm		Δdmp		9	0,1,2,3,4	Vdmp	Kia	SD⁴⁾ SD1⁵⁾	Sea⁴⁾⁵⁾	ΔBs		Vbs
over	including	high	low	max			max	max	max	High	Low	max
1)2.5	6	0	-5	5	4	3	5	8	8			5
6	18	0	-5	5	4	3	5	8	8			5
18	30	0	-6	6	5	3	6	8	8			5
30	50	0	-7	7	5	4	7	8	8			5
50	80	0	-9	9	7	5	8	8	10			6
80	120	0	-10	10	8	5	10	9	11			8
120	150	0	-11	11	8	6	11	10	13			8

ABEC-7 Tolerance Class ABEC-7 (P4)

Inner Ring												Tolerance in um/s
d mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
d mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	Low	max
1)0.6	2.5	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
2.5	10	0	-4	0	-4	4	3	2	2.5	3	3	0	-40	-40	2.5
10	18	0	-4	0	-4	4	3	2	2.5	3	3	0	-80	-80	2.5
18	30	0	-5	0	-5	5	4	2.5	3	4	4	0	-120	-120	2.5
30	50	0	-6	0	-5	6	4	3	4	4	4	0	-120	-120	3
50	80	0	-7	0	-5	7	5	3.5	4	5	5	0	-150	-150	4

Outer Ring												Tolerance in um/s
D mm		Δdmp		Δds		Vdp²)Diameter Series		Vdmp	Kia	Sd	Sia	ΔBs		Vbs
D mm		Δdmp		Δds		7,8,9	1,7,2,3,4	Vdmp	Kia	Sd	Sia	ΔBs		Vbs
over	including	high	low	high	low	max		max	max	max	max	High	low	max
1)2.5	6	0	-4	0	-4	4	3	2	3	4	5	Identical to ΔBs and VBs of inner ring of same bearing		2.5
6	18	0	-4	0	-4	4	3	2	3	4	5			2.5
18	30	0	-5	0	-5	5	4	2.5	4	4	5			2.5
30	50	0	-6	0	-6	6	5	3	5	4	5			2.5
50	80	0	-7	0	-7	7	5	3.5	5	4	5			3
80	120	0	-8	0	-8	8	6	4	6	5	6			4
120	150	0	-9	0	-9	9	7	5	7	5	7			5

Tolerance Data for Vibration of Single Bearing

D	V			V1			V2			V3			V4
mm	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High	Low	Medium	High
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Maximum Vibration Acceleration of Single Bearing

D	Diameter Series(0)				Diameter Series(2)					Diameter Series(3)
mm	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
3	35	34	32	28	36	35	32	30	-	37	36	33	31	-
4	35	34	32	28	36	35	32	30	-	37	36	33	31	-
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
55	59	56	52	49	60	57	53	50	47	62	59	54	51	48
60	61	58	54	51	62	59	54	51	48		61	56	53	50
